Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G wPSU

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G wPSU

SKU BMD-CONVBDC/SDI/HDMI03G/P
by Blackmagic Design
Rp 0
Rp 1.810.000 - Rp 1.810.000
Rp 1,810,000
Rp 1.810.000 - Rp 1.810.000
Rp 1.810.000
Text block

Pickup available at Jakarta

Usually ready in 24 hours

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

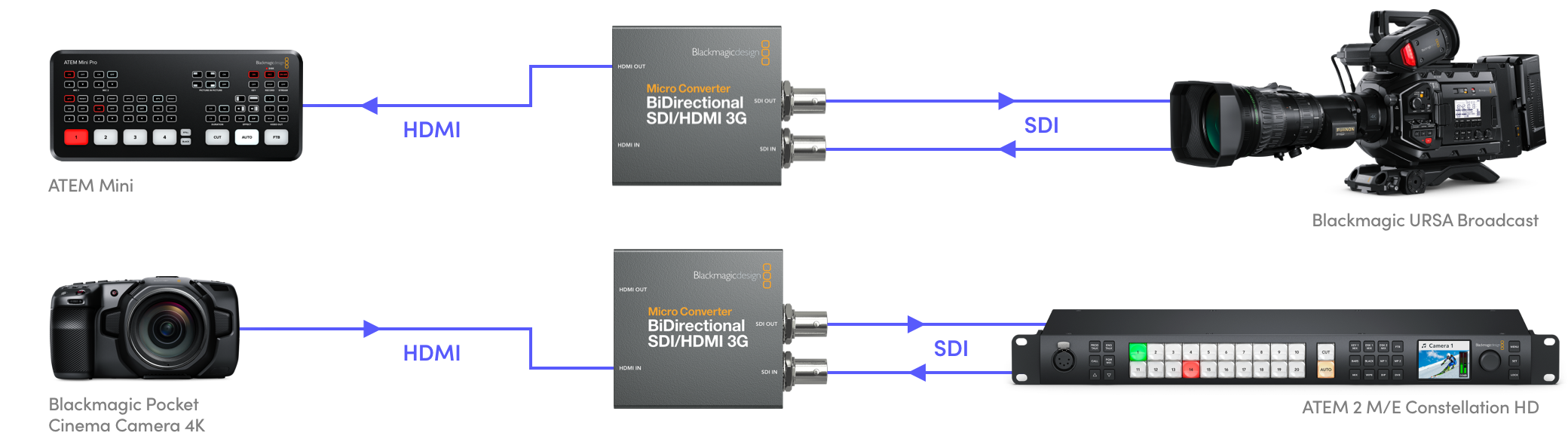

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G wPSU. Sekarang Anda dapat mengonversi SDI ke HDMI dan HDMI ke SDI secara bersamaan dalam kombinasi format SD dan HD apa pun hingga 1080p60 secara bersamaan! Setiap arah konversi dapat menjadi standar video SD atau HD yang berbeda, jadi seperti mendapatkan dua konverter dalam satu! Koneksi input dan output 3G-SDI multi-tingkat kompatibel dengan hampir semua peralatan siaran profesional, termasuk perangkat Level A dan B. Bahkan secara otomatis mendeteksi semua format SD dan HD.

Input
Video Input
3G-SDI, HDMI
Input Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 59.94 fps
PAL 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL 25 fps
Embedded Audio Input
HDMI, SDI
Output
Video Outputs
3G-SDI, HDMI
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL (768 x 576) 25 fps
Embedded Audio Output
HDMI
SDI
Standard
Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M-A/425M-B
Connectivity
Other I/O
1 x USB-C Input
Power
Power I/O
1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption
2.5 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight
6.13 oz / 174 g

Use this text to share information about your product.
  • 3 Tahun Garansi Resmi
