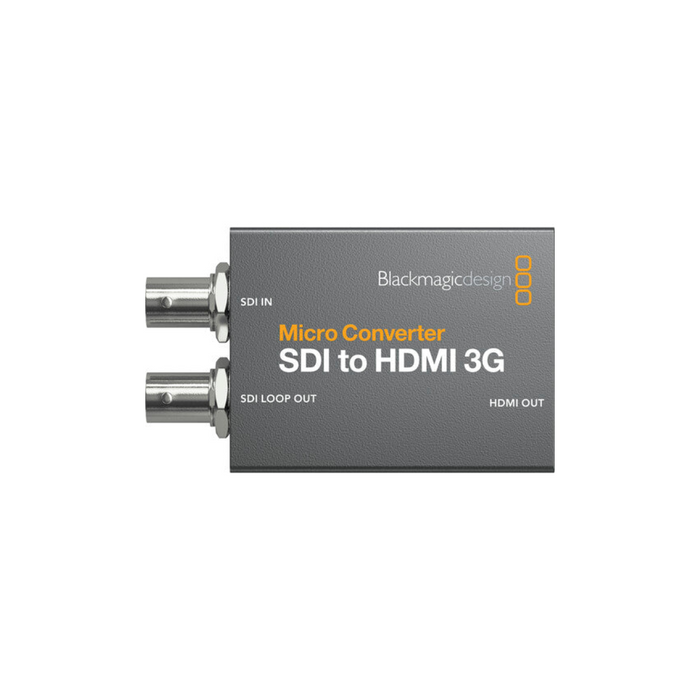

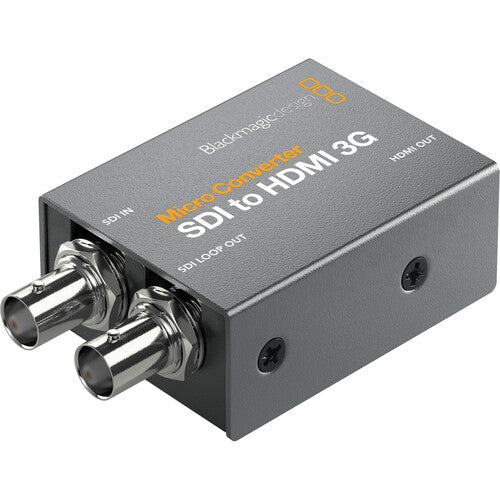

Blackmagic Design Micro Converter SDI To HDMI 3G

Blackmagic Design Micro Converter SDI To HDMI 3G

SKU BMD-CONVCMIC/SH03G
by Blackmagic Design
Rp 0
Rp 1.350.000 - Rp 1.350.000
Rp 1,350,000
Rp 1.350.000 - Rp 1.350.000
Rp 1.350.000
Termasuk PPN 11%

Fitur utama

• 1x SD/HD/3G-SDI Input & 1 x Loop Output
• 1 x HDMI Type A Output
• DCI 2K SDI In/Out | 1080p60 HDMI Out
• 3D LUT for Calibrating or Loop Output
• Embedded Audio
• LED Video & Power Signal Indicators

Micro Converter SDI to HDMI 3G dari Blackmagic Design memungkinkan Anda untuk menghubungkan kamera SDI ke monitor atau komponen HDMI. Konverter ringkas ini memiliki satu input 3G-SD / HD / SDI, satu loop out 3G-SD / HD / SDI, dan satu output HDMI yang secara otomatis mendeteksi dan mencocokkan input SDI Anda dengan output HDMI dan kompatibel dengan resolusi input / output hingga 1080p60.

Input
Video Input
3G-SDI
Input Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 59.94 fps
PAL 50 fps
Embedded Audio Input
SDI
Output
Video Outputs
3G-SDI, HDMI
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL (768 x 576) 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL (768 x 576) 25 fps
Connectivity
Other I/O
1 x USB-C Input
Power
Power I/O
1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption
2.5 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight
5.29 oz / 150 g

• Micro Converter SDI to HDMI 3G

  • 3 Tahun Garansi Resmi
